post #1 of 22 Old 05-14-2008, 07:19 AM Thread Starter
Senior Member
Feedback Score: 9 reviews

VFORCEJOHN's Avatar

Join Date: Aug 2004
Location: Barnesville, PA
Posts: 15,419
Lightbulb

Here's a list of my Clutch services. this is as of 5-14 2008



Stage 2 and 3 non spidermod Clutches. 295.00 Utility Kebc Bearing Removal is recomended.

Price includes 1-4 day turnaround, and 2 Day Return Shipping. I get the Clutch on Monday, You get the clutch back and can ride on the weekend








What is Done is Sheave Clearanced for the Overdrive. Stage 2 is 15% overdrive for lower 650 powered machines. Stage 3 is 20% more overdrive for 700 and UP powered machines.



Stage 2 is 87 Mph gearing. Stage 3 is 93 mph gearing.



Sheave angle is Changed to Ease the initial engagment Claping forces and to Increace Belt Grip by focusing the Belt Grip on the Mid-Upper portion of the belt. NO BELT BURNING OR GRINDING.



Faceplate is Modified, Clearanced, and Lightened to allow full Sheave Travel.



John

WEB: WWW.VFORCEJOHN.COM
PHONE: 570-773-1240
EMAIL: [email protected]

DISCOUNT MUZZY EXHAUSTS click here https://www.kawieriders.com/forum/int...ml#post1328320

Last edited by VFORCEJOHN; 08-28-2013 at 11:24 AM.
VFORCEJOHN is offline
Sponsored Links
Advertisement

post #2 of 22 Old 05-14-2008, 07:50 AM Thread Starter
Senior Member
Feedback Score: 9 reviews

VFORCEJOHN's Avatar

Join Date: Aug 2004
Location: Barnesville, PA
Posts: 15,419
Stage 2 or Stage 3 Spidermod. 295.00 Kebc bearing removal is recomended




Stock Modded Plate



Dalton Modded Plate



Spidermod Clutches are Identified By the recessed Faceplate and the Exposed Fixed Sheave thru the front cover. They are available for Both Stage 2 sheaves and Stage 3 Sheaves.



What is a Spidermod?? What does it do?? What the Spidermod Does is Give the Clutch the ability to run Lighter weights and have them function as heavier weights. The Spidermod changes the Fulcrum point as to where the weight contacts the roller VS Sheave position. Meaning, the Sheave moves Less, moves faster, and gives more belt travel. Spidermod also DECREACES belt-sheave gap to Less than stock Specs.



This gives the Atv more Lowend and is a Dragrace Oriented, Sled Pulling, and Stock Class Gncc Modification. this Clutch is smoother and lighter than the normal Stock Spider clutch machining.



Fuel economy is Increaced by 15-20%







here you can see a Stage 3 VS a Stage 3 Spidermod Clutch Sheave for comparison



---------------------------------------------------------------------------------------------------------------------



LIGHTENED SECONDARY. price is 275.00 1-4 day turnaround and 2 day return shipping.



this Modification removes 9 ounces of unused rotational mass from the secondary clutch. Recomended for Dragracers or Serious Trail Riders. NOT recomended for Ute's running larger than 26 inch tires.









Lighter rotating mass = Less power consumed from the drivetrain.



John

WEB: WWW.VFORCEJOHN.COM
PHONE: 570-773-1240
EMAIL: [email protected]

DISCOUNT MUZZY EXHAUSTS click here https://www.kawieriders.com/forum/int...ml#post1328320

Last edited by VFORCEJOHN; 08-28-2013 at 11:22 AM.
VFORCEJOHN is offline
post #3 of 22 Old 05-14-2008, 08:17 AM Thread Starter
Senior Member
Feedback Score: 9 reviews

VFORCEJOHN's Avatar

Join Date: Aug 2004
Location: Barnesville, PA
Posts: 15,419
Teryx Clutch Modification. Price is 350.00 KEBC bearing Removal is Recomended.

The Teryx Modification is different from the V and Ute Modifications as the Teryx Clutches are thicker and vastly different from the ATV clutches we have come to know. The Clutch is modified More than a Stage 3 Clutch. the Teryx needs ALL the overdrive gearing we can throw at it.

They work, 84 MPH gearing, 42-45 low range gearing, Higher top speeds, Far greater low end, and far better belt grip.

This is 100% different approach compared to any bolt on clutch components on the market.


VFORCEJOHN CUSTOM SPRINGS AND ADJUSTABLE WEIGHTS ARE AVAILABLE AS OF 4/20/2010


Comparison Pic of Teryx VS Bruteforce Clutch. They are NOT atv clutches, but very similar.


Dalton Teryx clutch VS Stage III Teryx clutch with dalton cover, weights and spring
Yes, the Dalton components can be enhanced for even better top speed and performance.

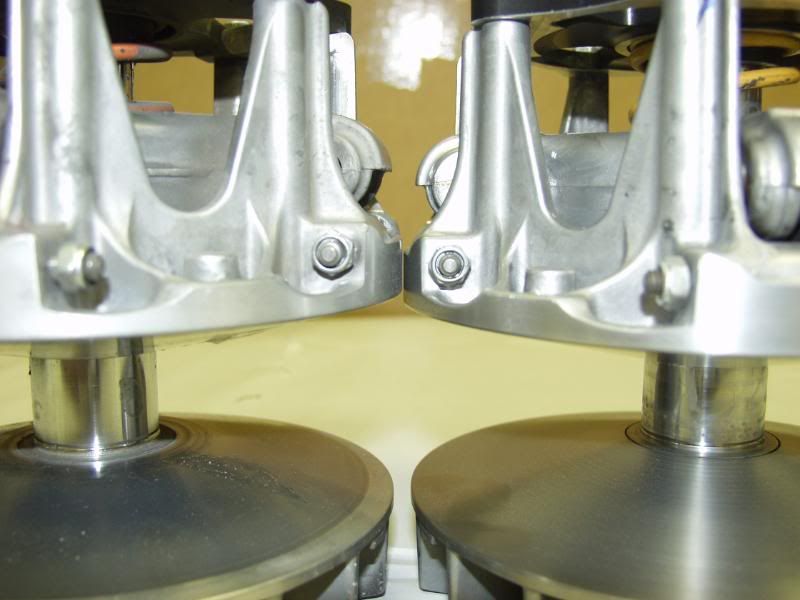

Dalton clutch VS Stage III Teryx clutch. Less sheave-belt gap = better initial belt grip, more travel = higher top speeds, more overdrive, lighter clutch assembly, and even more fuel economy.

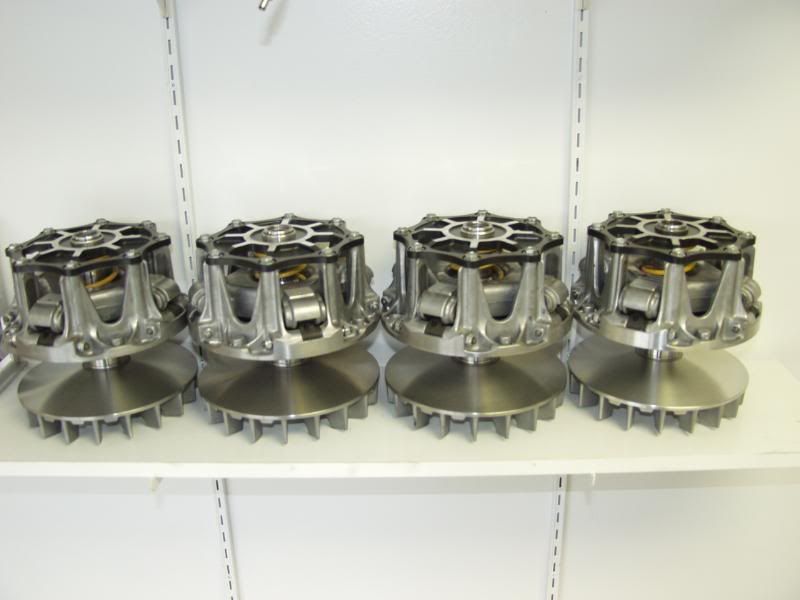

Teryx Full race clutches loaded with Dalton faceplate, spring, and adjustable weights.

What I do is Clearance the Sheaves, Modify the Sheave angle, Modify the Spider, Modify the faceplate and remove the KEBC.



Modded Stock Teryx Clutch



Teryx Sheave modification



9.4 pounds after the modification. Removes OVER 1 pound

John







Quote:
Would I be better off sending you a Dalton cover or the stocker? [/b]


Whether you choose to have the Dalton or Stock cover modified is Strictly up to you.



Both the Stock and Dalton Covers have to be machined for all modifications. There is NO benefit to the modded Dalton cover other than it's Striking Looks and Billet Toughness.



John

WEB: WWW.VFORCEJOHN.COM
PHONE: 570-773-1240
EMAIL: [email protected]

DISCOUNT MUZZY EXHAUSTS click here https://www.kawieriders.com/forum/int...ml#post1328320

Last edited by VFORCEJOHN; 12-14-2010 at 08:37 AM.
VFORCEJOHN is offline
Sponsored Links
Advertisement

post #4 of 22 Old 05-14-2008, 09:34 AM Thread Starter
Senior Member
Feedback Score: 9 reviews

VFORCEJOHN's Avatar

Join Date: Aug 2004
Location: Barnesville, PA
Posts: 15,419
all secondaries were done the same post up a pic of it.




these are the only 2 other pics I have here.

but I do them all the same. didn't change them


Quote:
stage 4? and my milled secondary looks different... I guess you stopped taking so much off of them? [/b]


I need a pic of the Stage 4.



I don't have any here. I think you have the OLD stage 4 with the fins on it

this might even be your clutch or 1stquads old one. I don't do them thisway anymore





john

WEB: WWW.VFORCEJOHN.COM
PHONE: 570-773-1240
EMAIL: [email protected]

DISCOUNT MUZZY EXHAUSTS click here https://www.kawieriders.com/forum/int...ml#post1328320
VFORCEJOHN is offline
post #5 of 22 Old 05-15-2008, 10:47 AM
Senior Member
Feedback Score: 1 reviews

GnFnRs's Avatar

Join Date: May 2006
Location: louisiana
Posts: 6,016
how much to go from a stage 3 to a stage 4? you did the three for me awhile back and now i am thinking of draggin only so i might wanna go with the stage 4. will it make enough difference to justify the $$?

also if i decide to get the 4 i will send you the 2ndry too for lightening

If Obama is the answer,the question was stupid.
GnFnRs is offline
post #6 of 22 Old 05-16-2008, 06:46 AM
Premium Member
Feedback Score: 3 reviews

Dvader's Avatar

Join Date: Mar 2006
Location: south jersey pines
Posts: 10,868
very good job on this topic john.
I `ll be goin for the spidermod on both of my clutches.

Trail//FST730,
,stock porting/6*key/fststg2cams/62hp/stock swinger/ daulton blue 2-56`s/stock secondary

clutch cut [vfj stg3w/spidermod]
Muzzy Superpro.
elka`s ,, plus many add on`s

.
built and tuned by VFJ at interstate motorsports
Dvader is offline
post #7 of 22 Old 05-16-2008, 06:53 AM Thread Starter
Senior Member
Feedback Score: 9 reviews

VFORCEJOHN's Avatar

Join Date: Aug 2004
Location: Barnesville, PA
Posts: 15,419
it's easier to explain what it does, when they see what it looks like

John

WEB: WWW.VFORCEJOHN.COM
PHONE: 570-773-1240
EMAIL: [email protected]

DISCOUNT MUZZY EXHAUSTS click here https://www.kawieriders.com/forum/int...ml#post1328320
VFORCEJOHN is offline
post #8 of 22 Old 05-16-2008, 06:29 PM
Premium Member
Feedback Score: 4 reviews

z-mann's Avatar

Join Date: Nov 2003
Location: De Soto, MO
Posts: 11,677
Quote:



How bout some clutch work



I never machined and removed the holes as far as I can remember.



don't forget to get back to me with what we discussed the other day



John
[/b]

yeah.. free beer on John....

And I am doing the cams in the morning. I will get back to you after I get them swapped out.
Attached Images
File Type: jpg milled_secondary_pic_3.jpg (70.8 KB, 354 views)
File Type: jpg milled_secondary_pic_2.jpg (73.8 KB, 382 views)



04 kfx730- Fundy/amr powered
04 kfx764- " "
04 kfx? BK powered chain drive
08 kfx ? chain drive
04 z400
04 Prairie -BK 840
06 Sportmans 90
04 250ex
99 traxter
08 Teryx
z-mann is offline
post #9 of 22 Old 05-16-2008, 06:36 PM Thread Starter
Senior Member
Feedback Score: 9 reviews

VFORCEJOHN's Avatar

Join Date: Aug 2004
Location: Barnesville, PA
Posts: 15,419
yep, you were right.

Damned if I could remember what I even did.

How long ago did I even do that?? I remember cutting your clutches but I can't remember how long ago.

looks to be holding up well. deflection looks good too!!

John





WEB: WWW.VFORCEJOHN.COM
PHONE: 570-773-1240
EMAIL: [email protected]

DISCOUNT MUZZY EXHAUSTS click here https://www.kawieriders.com/forum/int...ml#post1328320
VFORCEJOHN is offline
post #10 of 22 Old 05-16-2008, 06:40 PM
Premium Member
Feedback Score: 4 reviews

z-mann's Avatar

Join Date: Nov 2003
Location: De Soto, MO
Posts: 11,677
hell if I know, I looked all over my pics from 06... and couldn't find it.... oh well.



04 kfx730- Fundy/amr powered
04 kfx764- " "
04 kfx? BK powered chain drive
08 kfx ? chain drive
04 z400
04 Prairie -BK 840
06 Sportmans 90
04 250ex
99 traxter
08 Teryx
z-mann is offline
